Installing a mini split air conditioning system can be a rewarding project for those who enjoy tackling home improvement tasks. With the right tools and instructions, you can successfully install your own system, enhancing your home’s comfort and energy efficiency. Here’s a step-by-step guide to help you through the process.
First, gather all necessary tools and materials. You will need a drill with bits, wrenches, screwdrivers, a level, measuring tape, hole saw bit (for drilling through walls), vacuum pump, refrigerant gauge set, and safety equipment like gloves and goggles. Ensure you have all components of the mini split system: indoor unit(s), outdoor condenser unit, refrigerant lineset (including copper tubing), electrical wiring kit with disconnect switch or circuit breaker box.
Begin by selecting an appropriate location for both units. The indoor unit should be mounted on an exterior wall in an area that allows even distribution of air throughout the room. Avoid placing it near heat sources or direct sunlight to ensure efficient operation. For the outdoor unit, choose a location that provides adequate airflow around it while keeping it accessible for maintenance.
Once locations are determined, mount the bracket for the indoor unit securely on the wall using screws and anchors if needed. Use a level to ensure proper alignment as this is crucial for optimal drainage from condensation buildup inside the unit.
Next comes drilling holes through which you’ll run refrigerant lines between units—typically about 3 inches in diameter—to accommodate not only these but also electrical wiring connections required later on during mini split ac installation process itself! Be mindful when choosing placement so as not hit any existing pipes or wires hidden within walls themselves; consult blueprints if unsure about layout specifics beforehand just case something unexpected arises along way here too!

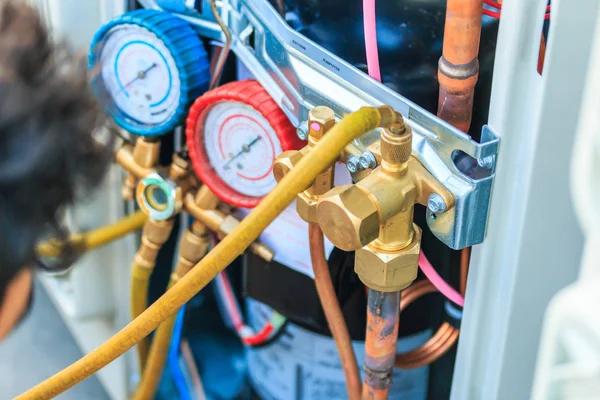

Afterward connect copper tubing from indoor evaporator coil outlet port down towards outdoor compressor inlet valve using flare nuts supplied kit provided manufacturer instructions carefully follow torque specifications avoid leaks occurring time goes by due improper tightening techniques applied incorrectly during initial setup phase overall completion task ahead us now finally nearing end soon enough thankfully though still some work left do yet before calling job done entirely finished quite satisfied results achieved thus far already feeling accomplished knowing hard efforts paid off handsomely indeed!
